GMC Brake Machine HBB-1010

$33,000.00

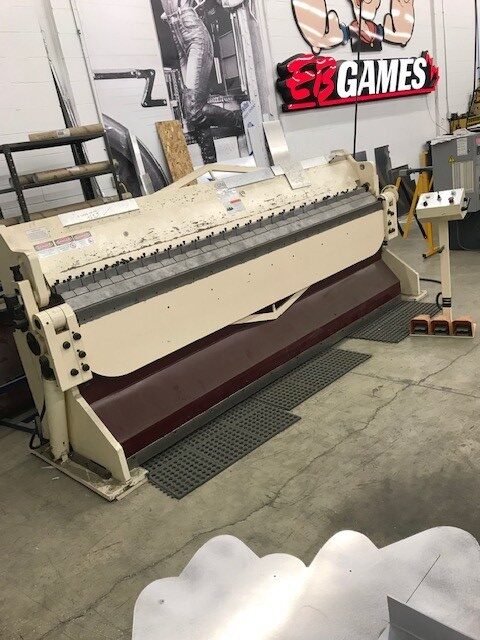

GMC 10′ x 10 Gauge Heavy Duty Hydraulic Box & Pan Brake, HBB-1010

Capacity:
Mild Steel: 10 Gauge
Stainless: 12 Gauge
Box Depth: 6″
Bend Angle: 135°
Large Beam Opening: 3″
Oil Tank: 25 Gallons
Motor: 10 HP

Standard Features:
ISO 9001 certified
Hydraulic adjustment for opening
Hydraulic power clamping for workpiece

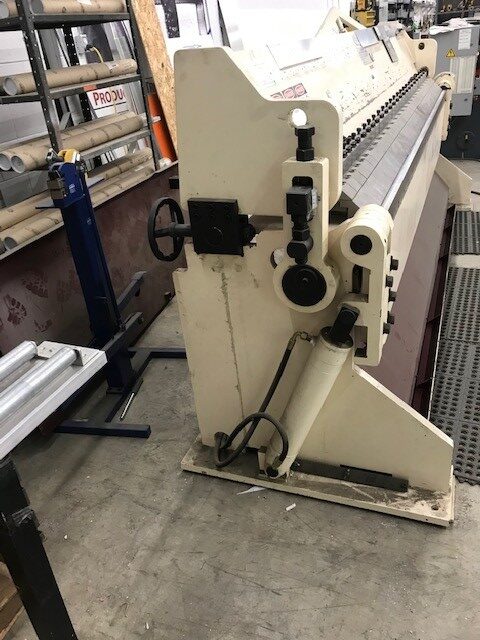

1″ manual beam adjustment (front and back)
Heavy welded all steel construction for maximum rigidity

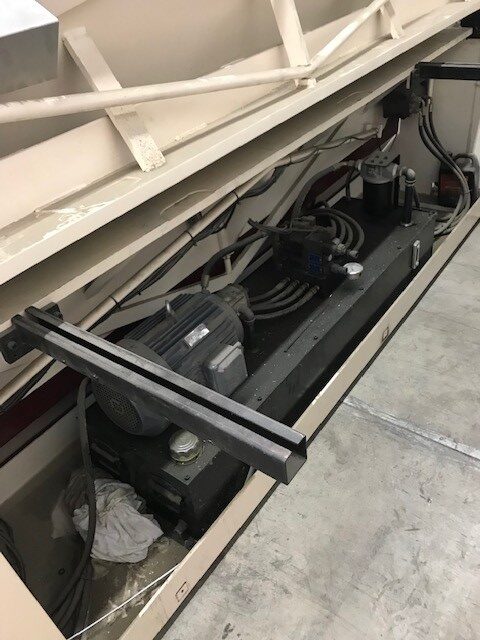

Hydraulic logic system centrally located and quiet
A wide guidebody ensures strong, stable, smooth and accurate movement

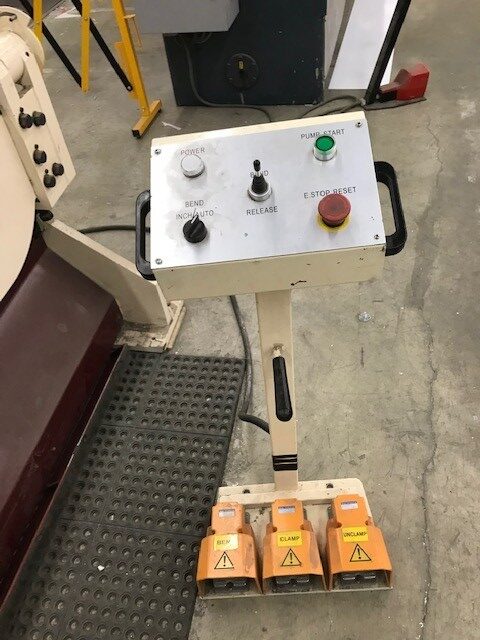

Central control panels on each side for convenient operation
Jog and auto operation modes

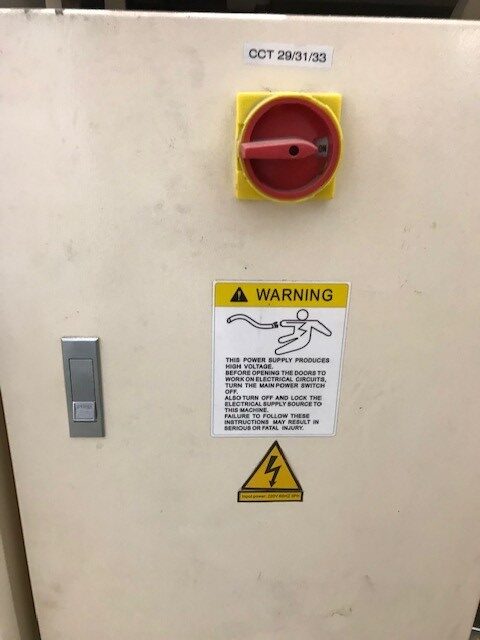

Overload protection and disconnect switch
One year warranty for parts
Standard Equipment:

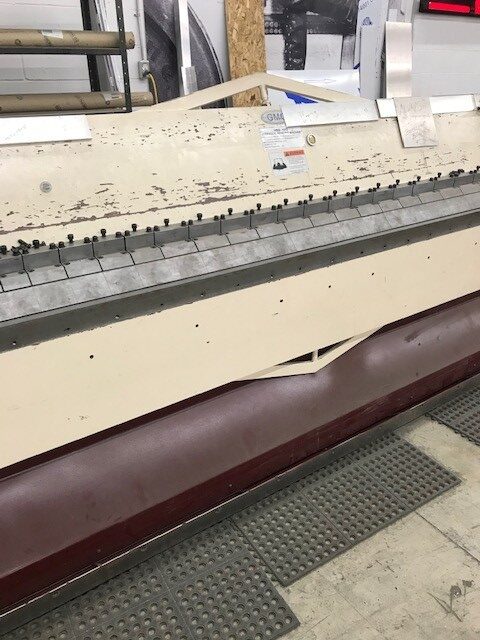

Assorted fingers (2″, 6″, 12″, 18″, 24″)
Angle set up dial
Hydraulic clamping system
Back Gauge
Foot pedal control for hydraulic clamping
(2) safety protection side guards
Dimensions: 157″ x 46″ x 69″ H

For info call Craig (416) 518-9275 or craig@theequipmentguy.ca
